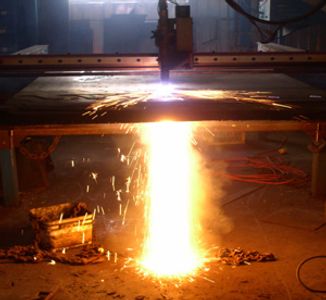

CNC Plasma Cutting

What is Plasma Cutting?

Plasma cutting is one of the simplest and most economical way to cut a variety of metal shapes accurately. Plasma cutters can cut much finer, faster, and more automatically than oxy-acetylene torches. Due to their effectiveness, plasma cutters - especially CNC plasma cutters (see below) - threaten to obsolete a large number of conventional metalworking tools.

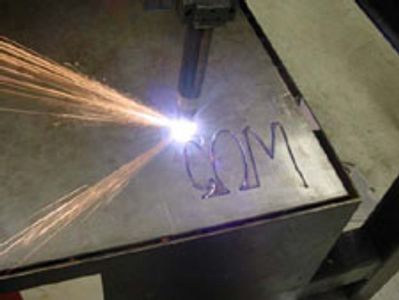

How a Plasma Cutter works



Basic plasma cutters use electricity to superheat air into plasma, which is then blown through the metal to be cut. Plasma cutters are extremely simple and require only a compressed air supply and an AC power outlet to operate.

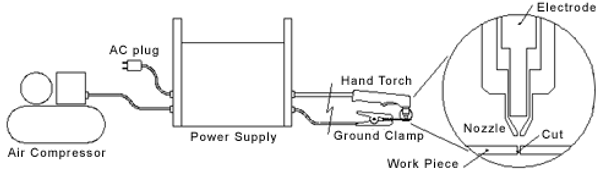

A complete plasma cutter consists of a power supply, a ground clamp, and a hand torch. The main function of the power supply is to convert the AC line voltage into a user-adjustable regulated (continuous) DC current. The hand torch contains a trigger for controlling the cutting, and a nozzle through which the compressed air blows.
An electrode is also mounted inside the hand torch, behind the nozzle.

Operation

 Initially, the electrode is in contact with (touches) the nozzle.


When the trigger is squeezed, DC current flows through this contact.
Next, compressed air starts trying to force its way through the joint and out the nozzle.


Air moves the electrode back and establishes a fixed gap between it and the tip. (The power supply automatically increases the voltage in order to maintain a constant current through the joint - a current that is now going through the air gap and turning the air into plasma.) Finally, the regulated DC current is switched so that it no longer flows through the nozzle but instead flows between the electrode and the work piece. This current and airflow continues until cutting is halted.
